OHP Series Servo Single Pump
product description:
| Flow code |
Rotation |
outlet port positions |
Design number |
Sealing level |
|
QHP1-16 QHP1-20
QHP1-25
|
View from shaft end of pump
R-Clockwise(CW)
L-Counterclockwise(CCW)
|
View from shaft end of pump
Opposite inlet port
Inline with inlet
90angle CCW trom Intet
|
B
|
NBR
Fluorine rubber
|
|
QHP2-16 QHP2-20
QHP2-25 QHP2-32
QHP2-40 QHP2-50 QHP2-63
|
|
QHP3-64 QHP3-70
QHP3-80 QHP3-100
QHP3-125 QHP3-136 QHP3-160
|
|
QHP4-160 QHP4-180
QHP4-190 QHP4-200
|
Knowledge :
Working principle of double-acting vane pump
The method is similar to the single-acting vane pump, except that the stator surface consists of two sections of long-radius arcs, two short-radius arcs and four transition curves, and the stator and the rotor are concentric. In the case where the rotor is rotated in the clockwise direction, the volume of the sealing working chamber gradually increases in the upper left corner and the lower right corner, is the oil absorption region, is gradually reduced in the lower left corner and the upper right corner, is a pressure oil region, and a section of sealing oil region is arranged between the oil suction region and the pressure region to separate them. The rotor of such a pump is rotated one revolution, and each sealing working chamber completes two operations of oil absorption and oil pressure, so it is called a double-acting vane pump. Two of the pumps The oil suction region and the two pressure regions are radially symmetric, and the liquid pressure acting on the rotor is balanced radially, so that it is also referred to as a balanced vane pump.
Our advantage .
1 . No MOQ. sample order accept .
2 . Big company cooperration experience , C . G . R . ETP .
3 . 10 years working experience .
4 . Fast delivery within 3 days .
Product Tags:
|
|

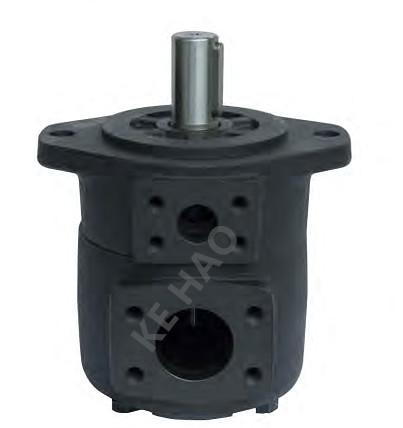

OHP Series Servo Single Vane Pump Series Cartridge Stainless Steel Gear Pump Images
|
